5.8mm & 12mm Mid Span Slit & Ring Tool - Professional Cable Management Solution for Network Installations & Data Centers
$94.02
$170.95
-45% OFF
Free shipping on all orders over $50
7-15 days international
18 people viewing this product right now!
30-day free returns
Secure checkout
33685419
Guranteed safe checkout
Description
Description
Description
Mid Span Slit & Ring Tool (5.8 mm-12 mm)

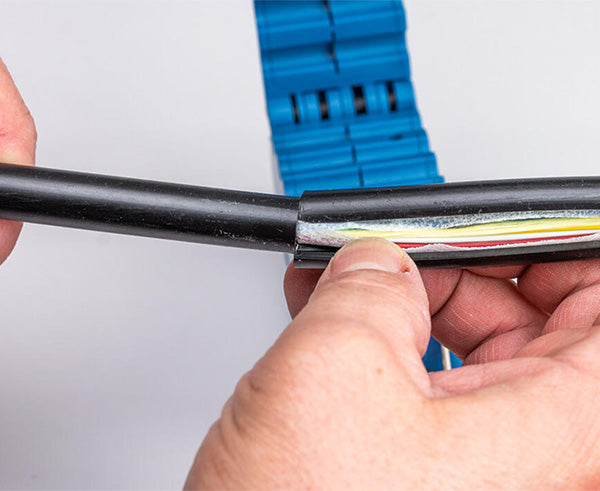

The PATENTED and award-winning MS-426 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in Prysmian ESMF Optical Mini FlexTube® cables (as well as other thick-walled 5.8 to 12 mm diameter jackets, including Corning equivalent cables). Building on the popularity of the Jonard Tools MS-6 and MS-26 Fiber Optic Mid Span Slitting Tools, we have incorporated a ring feature in the tool to make it even more versatile.
Features
Features
- Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 5.8 mm to 12 mm
- One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)
- Compact design weighing less than 8 oz with included tethering hole makes it perfect to use in tight spaces or on the go
- Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- This tool was specially designed for use on Prysmian ESMF Optical Mini FlexTube® cables and other similar style cables, including Corning equivalent cables
- Replacement blade set available, part number: MS-426RB
- Blades last for 5,000 slits/cuts
Groove Sizes: 5.8-6.4 mm | 7.8-8.4 mm | 9.8-10.4 mm | 11.2-12 mm
Specifications
Specifications
| Cut Type | Slit, Ring |
| Number of Slitting Grooves | 4 |
| Number of Ringing Grooves | 4 |
| Cable Type | Thick-walled Jackets (up to 2.0 mm thick) |
| Cable Diameter | 5.8 mm-12 mm |
| Dimensions | 3.58" x 1.53" x 3.37" (9.1 cm x 3.9 cm x 8.6 cm) |
| Weight | 0.46 lb (207.932 g) |
| UPC # | 811490019973 |
Additional Information
Additional Information
Jonard Tools MS-426 Mid Span Slit & Ring Tool (5.8 mm-12 mm) | Jonard Tools Interactive Class - How to Perform Mid Span Access on Fiber Optic Cables |
Jonard Tools MS-426 Call Out Video | |
What's In The Box
What's In The Box
- Qty 1 - Mid Span Slit & Ring Tool (5.8 mm-12 mm)
