TP-Link ER7206 Omada Gigabit VPN Router | High-Speed Secure Networking for Home & Business | Ideal for Remote Work & Online Gaming
$76.99
$139.99
-45% OFF
Free shipping on all orders over $50
7-15 days international
27 people viewing this product right now!
30-day free returns
Secure checkout
48196047
Guranteed safe checkout
Description
Description

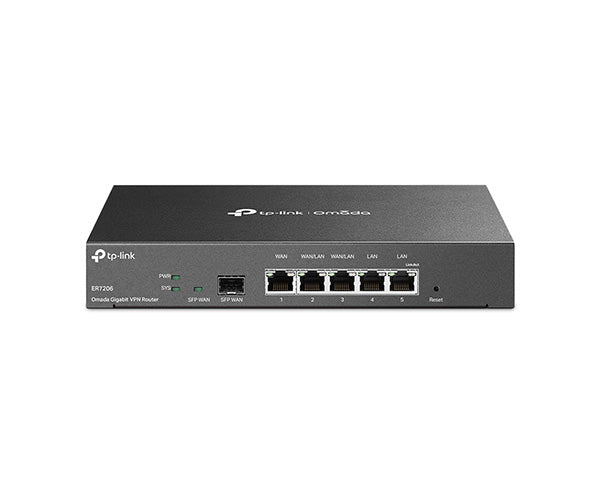

ER7206 TP-Link|Omada Gigabit VPN Router
Secure your business network with the ER7206 Omada Gigabit VPN Router. Designed for high flexibility, this VPN router features one Gigabit SFP WAN port alongside three RJ45 Gigabit Ethernet ports, two of which can be freely switched between WAN and LAN modes. They work alongside two dedicated RJ45 Gigabit LAN ports to manage multiple internet connections through one device. With the multi-WAN Load Balancing function, data streams are distributed according to the bandwidth proportion of every connected WAN port to optimize multi-line broadband utilization.
The ER7206 also provides comprehensive security coverage with IPSec, PPTP, and L2TP VPN support over the IPSec/SSL protocols in addition to VLAN support and advanced firewall policies. The IPsec VPN has a throughput of up to 291.6 Mb/s and can handle up to 150,000 concurrent sessions. Use the Omada app to configure your ER7206 VPN router and other compatible network devices from almost anywhere, at any time.
Flexible Connections
The ER7206 VPN router features six Gigabit Ethernet ports comprised of one fixed SFP WAN port, one RJ45 WAN port, two RJ45 WAN / LAN ports, and two dedicated RJ45 LAN ports.
Optimized Bandwidth
The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port, raising the utilization rate of multi-line broadband.
Centralized Cloud-Based Management
Manage your entire network from different sites from anywhere, anytime via the web interface or Omada app.
Security Features
Integrated SPI FirewallVLAN supportDoS defenseIP/MAC/URL filteringIP-MAC bindingOne-click ALG activation
Features
Features
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
- Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
- Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections.
- Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Specifications
Specifications
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
|---|---|
| Interface | • 1 Fixed Gigabit SFP WAN Port • 1 Fixed Gigabit RJ45 WAN Port • 2 Fixed Gigabit RJ45 LAN Ports • 2 Changeable Gigabit RJ45 WAN/LAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 100–240 V~50/60 Hz |
| PoE Budget | - |
| Flash | SPI 4MB + NAND 128MB |
| DRAM | 512MB |
| LED | PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in. (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop |
| Max Power Consumption | 8.95W |
| Concurrent Session | 150,000 |
|---|---|
| New Sessions /Second | 5,500 |
| NAT (Static IP) | 940.3 Mbps / 940.2 Mbps |
| NAT(DHCP) | 940.3 Mbps / 940.4 Mbps |
| NAT(PPPoE) | 939.7 Mbps / 937.9 Mbps |
| NAT (L2TP) | 918.0 Mbps / 917.9 Mbps |
| NAT (PPTP) | 918.9 Mbps / 914.7 Mbps |
| 64 Byte Packet Forwarding Rate | - |
| IPsec VPN Throughput (AES256) | 291.6 Mbps |
| IPsec VPN Throughput | 291.6 Mbps |
| OpenVPN | 34.2 Mbps |
| L2TP VPN Throughput | Unencrypted: 1360.3 Mbps Encrypted: 202.3 Mbps |
| PPTP VPN Throughput | Unencrypted: 1379.3 Mbps Encrypted: 115.6 Mbps |
| SSL VPN Throughput | - |
| 66 Byte Packet forwarding rate | 486,918 pps / 488,372 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 81,274 pps |
| WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP |
|---|---|
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP* |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ACL | IP/Port/Protocol/Domain Name Filtering |
|---|---|
| Advanced Routing | • Static Routing • Policy Routing |
| Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection |
| NAT | • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management |
| Session Limit | IP-based Session Limit |
| SSL VPN | - |
|---|---|
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2* • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • 10 PPTP VPN Clients • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • 10 L2TP VPN Clients • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server* • 10 OpenVPN Clients* • 50 OpenVPN Tunnels* |
| Filtering | WEB Group Filtering§ URL Filtering Web Security§ |
|---|---|
| ARP Inspection | • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| Access Control | Source/Destination IP Based Access Control |
| Web Authentication | • No Authentication • Simple Password* • HotspotLocal User / Voucher* / SMS* / Radius* • External Radius Sever • External Portal Sever* • Facebook* |
|---|---|
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
|---|---|
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)** |
| Certification | CE, FCC, RoHS |
|---|---|
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Additional Information
360° Display of ER7206
What is Omada Cloud SDN?
What's In The Box
What's In The Box
- ER7206
- Power Cord
- Quick Installation Guide
