Corning UniCam Multimode Fiber Optic Connector - 50/125 OM3/OM4 LC for 10 Gig Networks - Single Pack - Perfect for Data Centers & High-Speed Networking
Free shipping on all orders over $50
7-15 days international
23 people viewing this product right now!
30-day free returns
Secure checkout
50045489
Description
Connectors are sold individually. All Corning products are special ordered and non-cancellable, non-returnable
Description

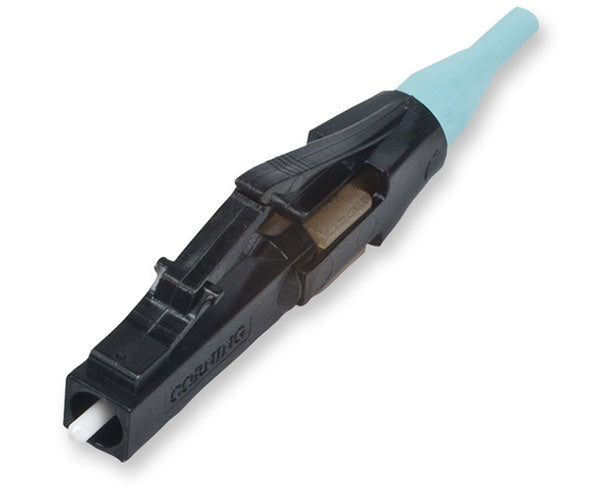

UniCam® Premium LC Connector, MM 50/125 10 GB, Ceramic, Single Pack
Corning Cable Systems UniCam® High-Performance Connectors offer best-in-class optical performance in a fast, easy field-termination solution. These high-precision ceramic ferrule multi-mode connectors guarantee a 0.1 dB typical/0.5 dB maximum insertion loss per connector pair for exceptional network performance.
Installation of an LC, SC, or ST Compatible Connector can be accomplished in about 45 seconds with the . The lightweight, hand held installation tool and the high-performance cleaver virtually eliminate human variability from installation, ensuring terminations are right, the first time, every time.
This kit was designed with consideration for the network installers, from the cleaver, with its integrated fiber scrap bin and dual-clamp precision hold, to the installation tool, with its immediate go/no-go feedback signal. Installation is as easy as strip, clean, cleave, cam and crimp, with exceptional optical performance guaranteed.
Every UniCam® connector is assured to meet the published specification at the time of installation or Corning will replace it.
Features
- Broad operating temperature (-40°C to +75°C)
- Factory-polished end face
- Fast termination (around 45 seconds) and no consumables
- Guaranteed 0.1 dB typical/0.5 dB maximum insertion loss per connector pair
Specifications
| Intermateability | FOCIS compliant with TIA/EIA 604-10A |
| Qualification | Passed EIA/TIA 568-B.3 |
| Durability | 0.2 dB change, 500 rematings, FOTP-21 |
| Tensile Strength | 10lb ≤ 0.2 dB change on jacketed cable exceeds;0.5lb ≤ 0.2 dB change on 900™m cable; FOTP-6 |
| Operating Temperature | -40°C to +75°C, exceeding EIA/TIA 568-B.3 |
| Connector Type | LC |
| Fiber | 50um LOMMF§ |
| Insertion Loss (dB)* | 0.1 typical/0.5 maximum |
| Reflectance (dB)** | ≤-26 |
| Housing Color Code | Black |
| Boot Color*** | Aqua |
