24-Port Fiber Inline Closure for Single Fusion Splice | Waterproof Cable Management | Ideal for Outdoor FTTH, Telecom & Data Center Installations

Includes one (1) splice tray. Additional FB25-3994STA12 splice tray sold separately.

Description

Fiber Inline Closure, 24 Splice Capacity

Compatible with Splice Tray FB25-3994STA12

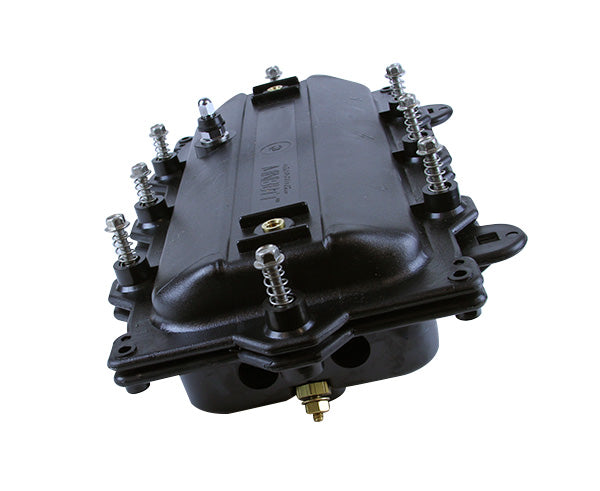

The FB23-4383-24IE MiniButt Fiber Optic Splice Closure is designed for low count fiber splicing and in areas where space is a constraint. The closure incorporates an integrated gasket to prevent water ingress but to allow for ease in access. This unit is supplied with one 12-single fusion splice tray and can accommodate one additional tray. High-tensile plastic housing is resistant to high compression impacts and wide temperature ranges.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with   and

Features

Features

• Supports both inline or butt splice configurations.
• Lightweight and compact.
• Up to four cable entries with cable OD range of .3" to .63"
• Suitable for cabinet, aerial, pedestal, wall, and aerial tap mounting.
• Constructed with impact and corrosion resistant materials.
• Integrated "F" pressure testing valve and grounding lugs.
• Up to 24 single fusion or 48 mass fused fibers.

Specifications

Specifications

Capacity

Splice Trays: (2) 12 Fiber Splice Trays, (1) Included

Dimensions

Height: 3.5"
Length: 13"
Width: 6.5"

Physical Properties

Weight: 7.5 lbs.
Material: 5720U Xenoye

What’s In The Box

What’s In The Box

• (1) - Fiber Inline Closure Housing
• (1) - Grommet Sizing Gauge
• (6) - Sealing Grommets
• (2) - Hose Clamps
• (1) - 15 3/8" Ground Strap Pack
• (1) - 4 3/8" Ground Straps Pack
• (1) - Central Strength Member Retention Plate
• (1) - Velcro Strap
• (6) - Velcro Dots
• (1) - Miscellaneous Tie Wraps
