Microduct Scoring Tool for 5-16mm Cables | Fiber Optic Cable Splicing & Installation Tool | Perfect for Telecom and Network Construction Projects
$18.67
$33.95
-45% OFF
Free shipping on all orders over $50
7-15 days international
22 people viewing this product right now!
30-day free returns
Secure checkout
78099221
Guranteed safe checkout
Description
Description

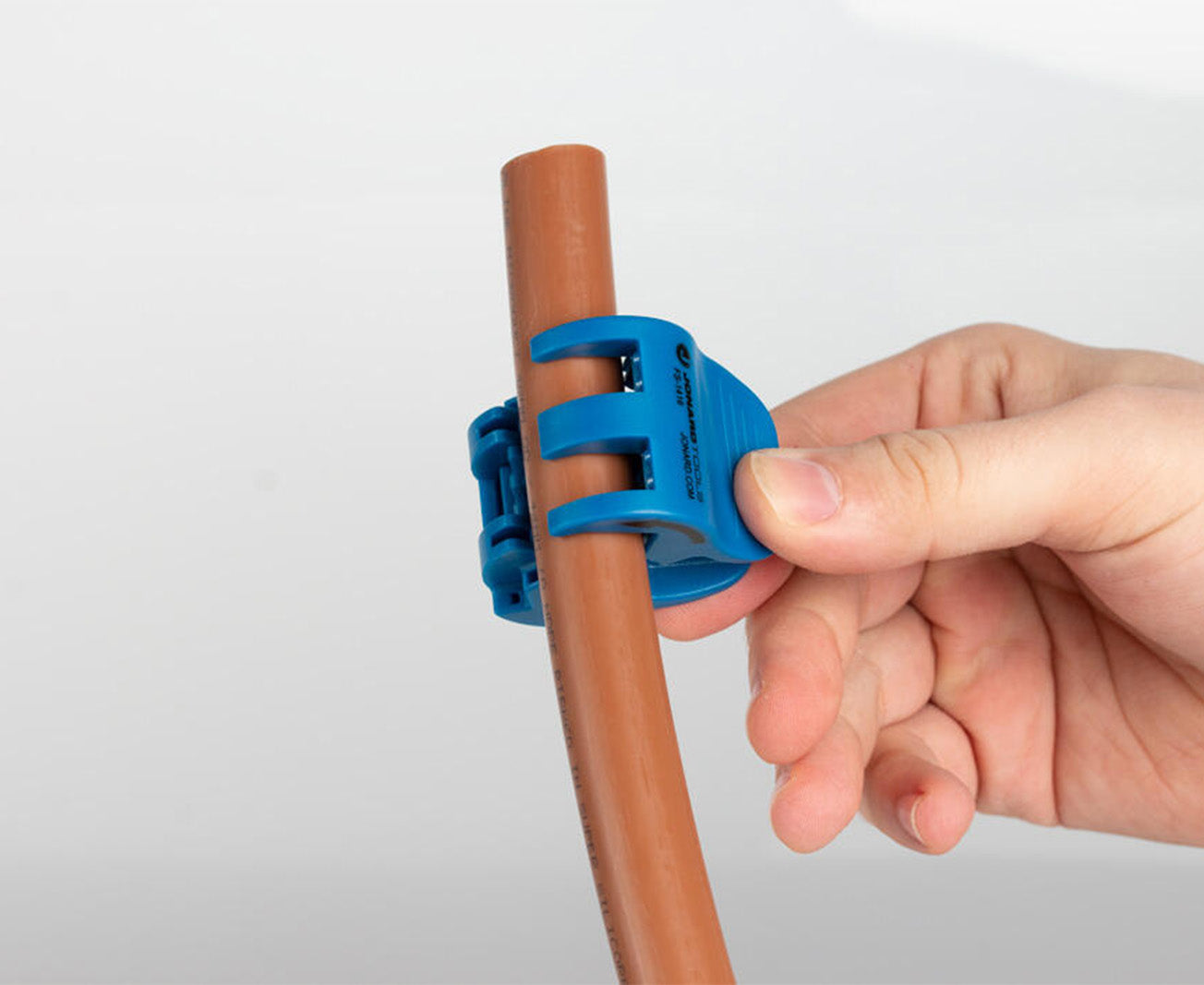

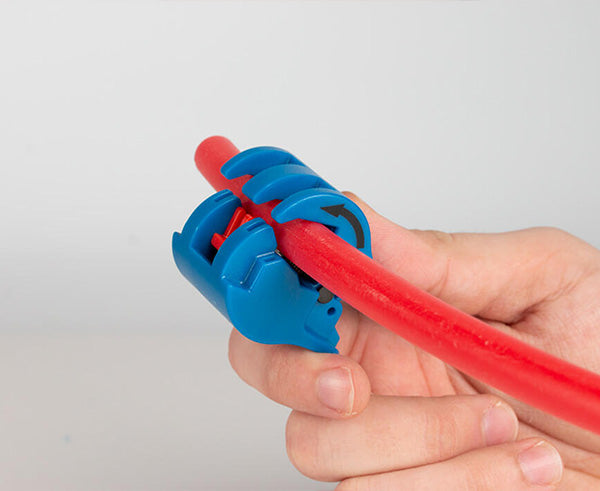

Thick-walled Microduct Scoring Tool, 5–16 mm
The Jonard Tools Microduct Scoring Tool is perfect for scoring and ringing 14/10 and 16/10 or 10/8, 12/10, and 14/12 fiber optic microducts without damaging the fibers inside.
Features
Features
- Unique design allows you to score and ring 14/10 and 16/10, or 10/8, 12/10, and 14/12 fiber optic microducts without any adjustments to the tool
- Perfect for microducts 5 mm-16 mm (0.20"-0.63") in diameter with a wall thickness of 1.5 mm-3.0 mm (0.059"-0.118") or with a wall thickness of 1.0 mm-1.3 mm
- Wide jaws curl around the microducts, holding them in place while scoring
- Spring-loaded butterfly clip makes it easy to open and position it perfectly on microducts
- Includes the FS-1416RB blade but also compatible with FS-1080RB blade for 10/8 and 12/10 fiber optic microducts
- Replacement Blades available: FS-1080RB & FS-1416RB
Specifications
Specifications
| FS-1080 | FS-1416 | |
| Microduct Wall Tickness | Thin / 1.0 mm-1.3 mm (0.039”-0.051”) | Thick / 1.5 mm-3.0 mm (0.059”-0.118”) |
| Microduct Diameter Range | 5.0-16.0 mm (0.20”-0.63”) | 5.0-16.0 mm (0.20”-0.63”) |
| Blade Depth | 1 mm (0.039”) | 3.08 mm (0.12”) |
| Dimensions | 1.4 in x 1.78 in x 1.3 in (3.56 cm x 4.52 cm x 3.3 cm) | 1.4 in x 1.78 in x 1.3 in (3.56 cm x 4.52 cm x 3.3 cm) |
| Weight | 0.080 lb (36.3 g) | 0.080 lb (36.3 g) |
| UPC# | 811490017917 | 811490018341 |
Additional Information
Additional Information
What's In The Box?
What's In The Box?
- Qty 1 - Microduct Scoring Tool, 5–16 mm
