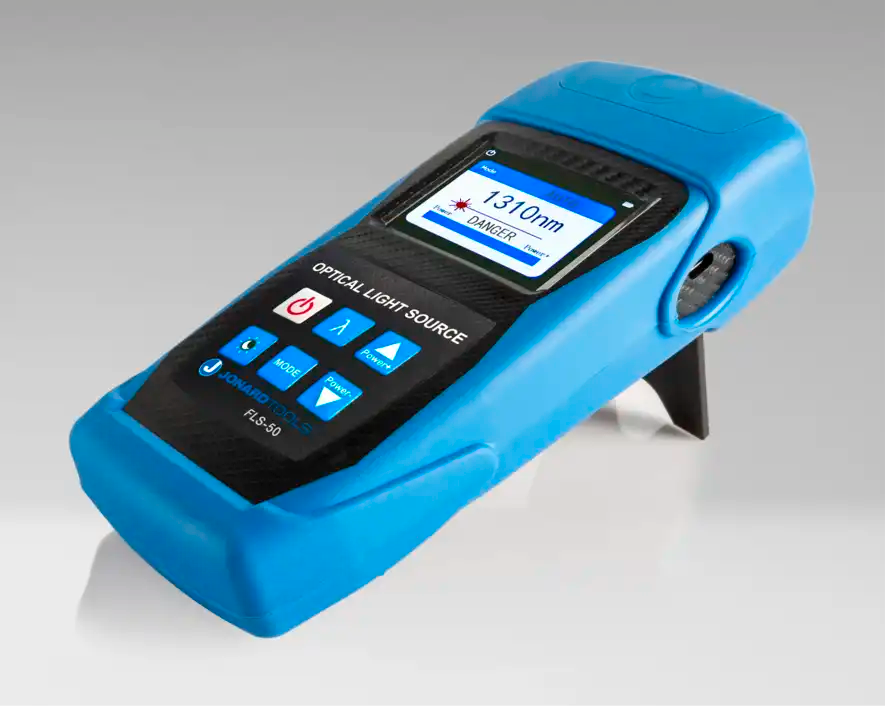

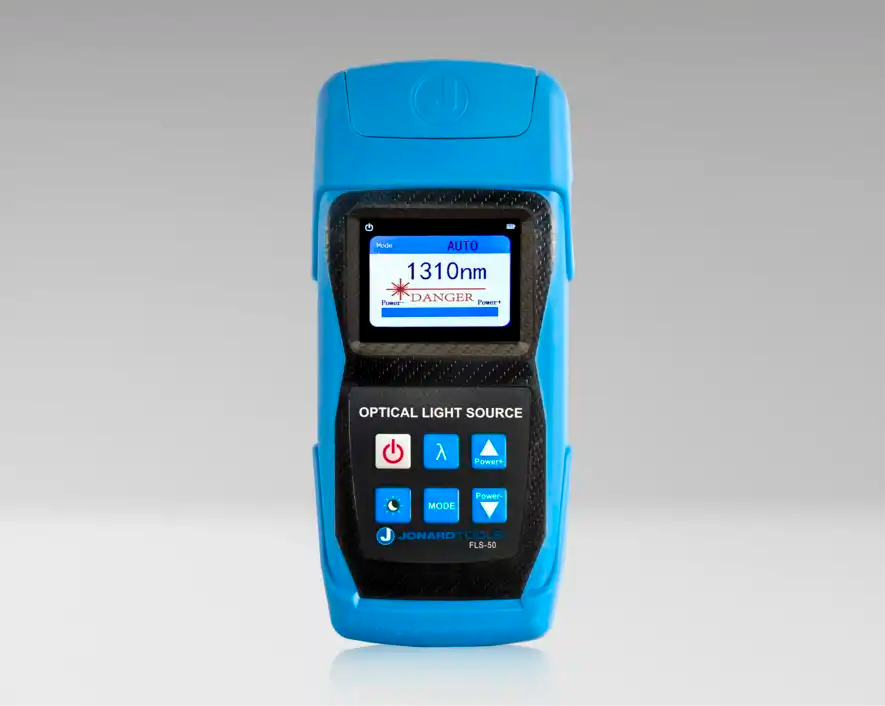

Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors
Designed to provide either 1310 nm or 1550 nm wavelengths, this optical light source is the perfect tool for providing a stable light source for single mode fiber measurements.
Features
Features
- Highly stable output power and wavelengths
- Four modulation outputs at 1310 nm and 1550 nm wavelengths
- Intelligent backlight control reduces power consumption
- Auto-off function can be turned on or off
- Automatic wavelength detection function

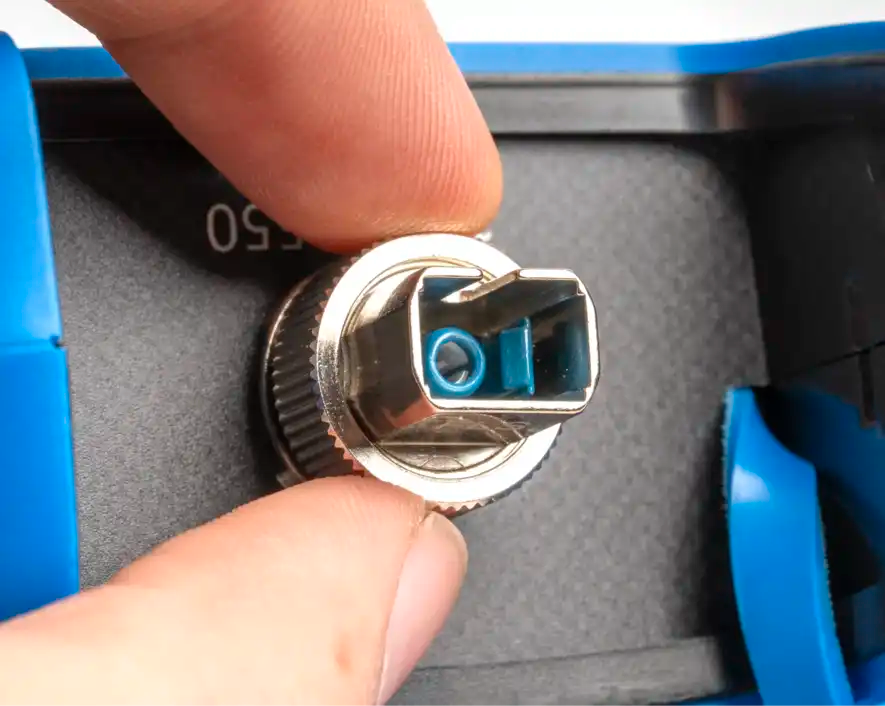

- SC, ST, FC & FC-LC adapters included
- PC/UPC adapters included
- Color LCD Display

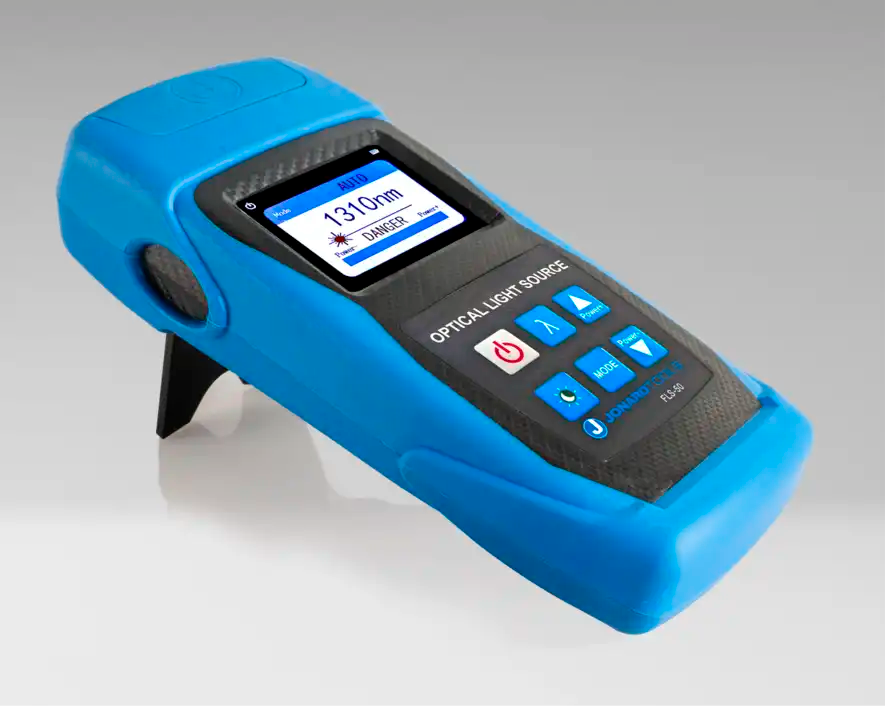

- Backside Kickstand
Specifications
Specifications

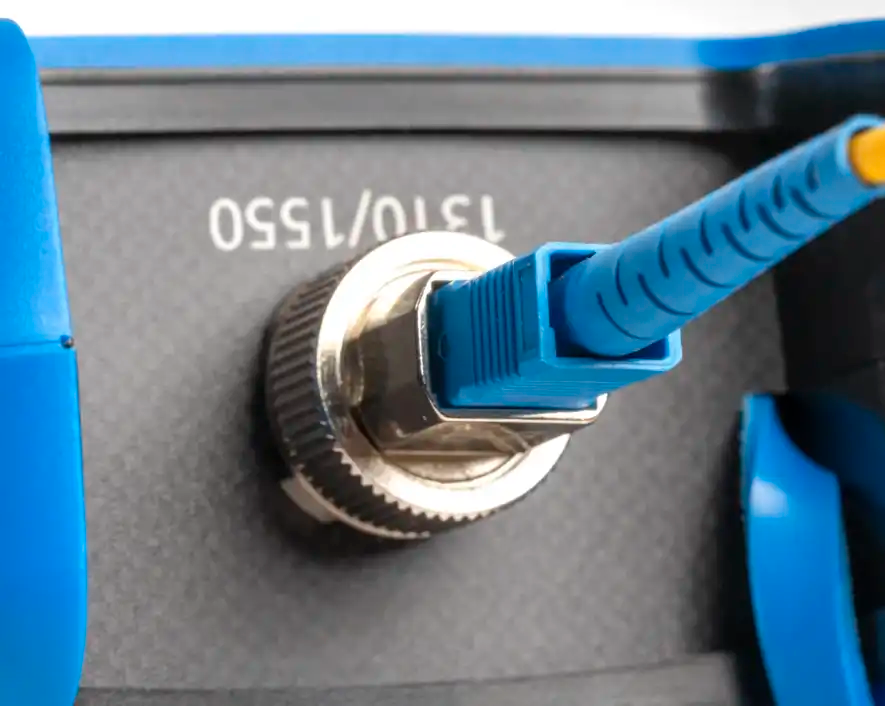

| Interface Type | FC/SC/ST/FC-LC (UPC) |
| Wavelength (nm) | 1310 / 1550 ±20 |
| Spectral Width (nm) | ≤ 5 |
| Typical Output (dBm) | -7 |
| Stability (dB, 15 min) | ≤ 0.05 |
| Typical Output Power Adjustable Range (dB) | -5 ~ -12 |

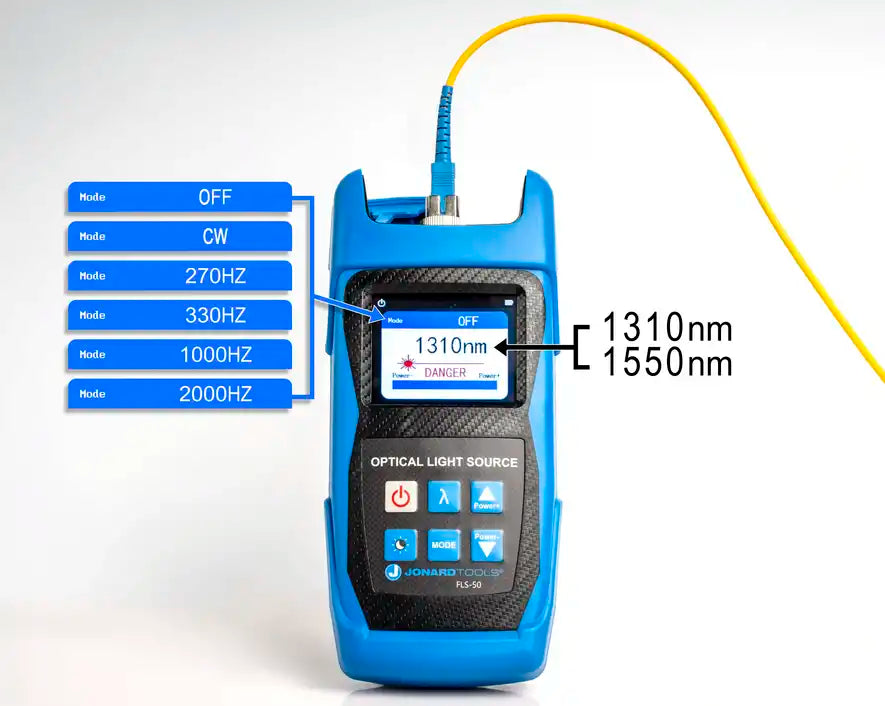

| Modulation Frequency (Hz) | CW, 270, 330, 1K, 2K |
| Display Size | 2.4-inch LCD |
| Power Supply | 1.5V × 3 AA alkaline batteries |
| Auto-off (min) | 10 |
| Continuous Working Hours (hr) | ≥ 25 |
| Operating Temperature (°C) | -10 ~ +60 |
| Storage Temperature (°C) | -25 ~ +70 |
| Dimensions | 7" × 3 3/16" × 1 1/4" (17.78 cm × 8.10 cm × 3.18 cm) |
| Weight | 0.64 lb (290 g) |
| UPC # | 811490018655 |
Additional Information
Additional Information
Jonard Tools Optical Light Source with FC/LC/SC Adapters (FLS-50) Product Video | Jonard Tools Fiber Optic Light Source (FLS-50) Product Video |
What's In The Box?
What's In The Box?
- Fiber Optic Light Source
- Instruction Manual
- (3) AA Batteries (required for operation)
- (2) Cleaning Swabs
- Protective Carrying Case

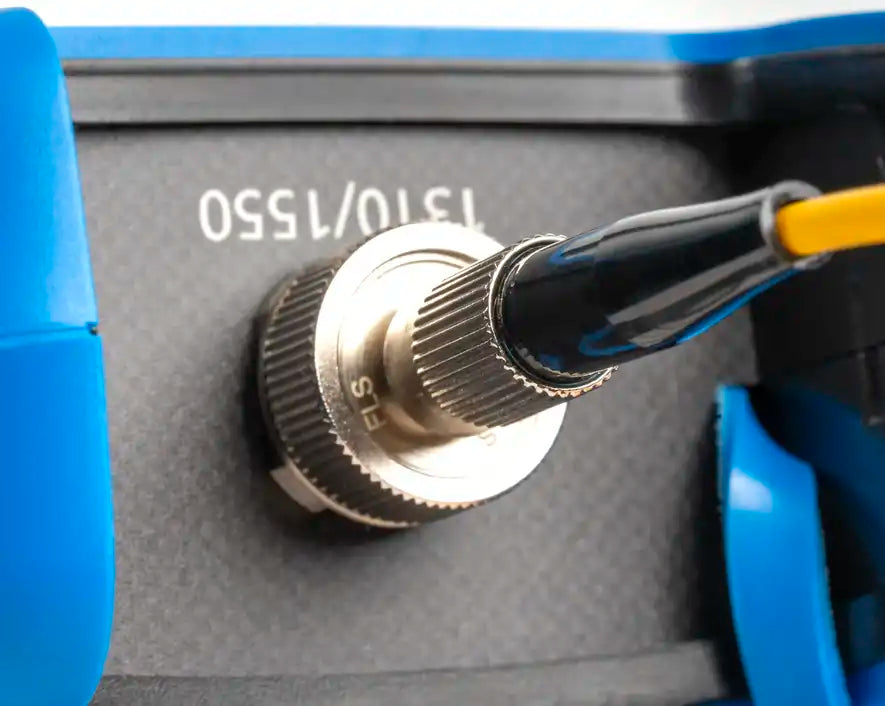

- FC/UPC Adapter
- SC/UPC Adapter
- ST/UPC Adapter
- FC-LC/UPC Adapter (Singlemode Only)
