Multimode MiniGBIC Module - High-Speed Fiber Optic Transceiver for Network Switches & Routers | Ideal for Data Centers, Enterprise Networks & Telecom Applications
$8.79
$15.99
-45% OFF
Free shipping on all orders over $50
7-15 days international
28 people viewing this product right now!
30-day free returns
Secure checkout
12835791
Guranteed safe checkout
Description
Description

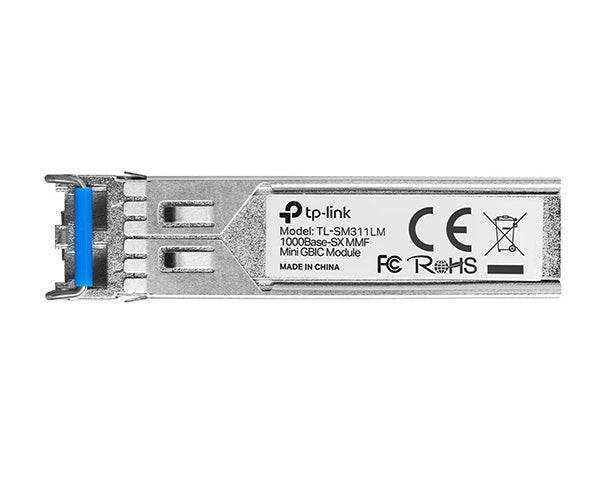

MiniGBIC Module
What This Product Does
The TL-SM311 series Fiber Module Cards are introduced to extend transfer distance. Attached to our managed/smart switches, they can expand the distance to several kilometers even tens of kilometers which can satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Features
Features
- Multi-mode MiniGBIC Module
- Compatible with all SFP Ports on TP-Link Products Including JetStream Switches, and Media Converter MC220L
- Work with MC200CM with a Multimode Fiber Connection
- Up to 550m Range with 50/125μm Multimode Fiber
- Up to 275m Range with 62.5/125μm Multimode Fiber
Specifications
Specifications
MEDIA CONVERTER & MODULES | |
|---|---|
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wavelength | 850nm |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cable | Multi-mode Fiber |
| Fiber Type | 50/125μm or 62.5/125μm Multimode |
| Max. Cable Length | 550m |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Environment | Operating Temperature: 0℃~70℃ (32℉~158℉) Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% Non-condensing Storage Humidity: 5%~90% Non-condensing |
What's in the Box?
What's in the Box?
- Qty 1 - SFP Module TL-SM311LM
- Qty 1 - Installation Guide
