4K Multi-Function Video Test Monitor - Professional HDMI/USB Signal Tester for Filmmaking, Gaming & Live Streaming - Perfect for Video Production, Studio Setup & Tech Troubleshooting
$570.9
$1038
-45% OFF
Free shipping on all orders over $50
7-15 days international
15 people viewing this product right now!
30-day free returns
Secure checkout
20825136
Guranteed safe checkout
Description
Description
Description

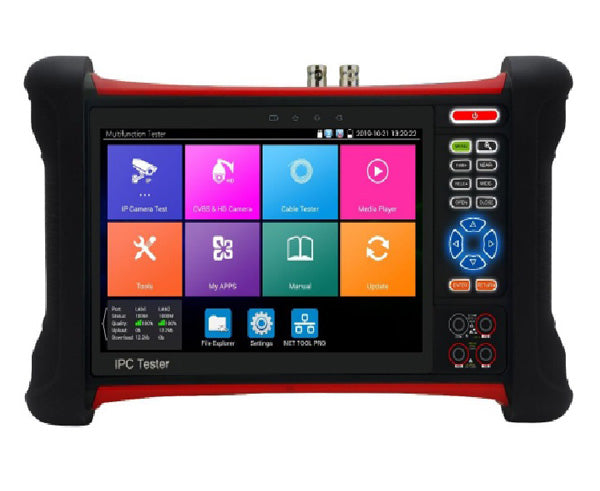

Multi-Function Video Test Monitor
The Multi-Function Video Test Monitor features a 7" LCD touchscreen, supporting both IP and analog cameras. It is ONVIF compatible for connection to any ONVIF Profile S-compliant IP camera (up to 4K Max Resolution). With a resolution of 1920 x 1200 and touchscreen functionality, navigation is simplified.
Features
Features
- Designed for installation and maintenance of IP and Analog cameras
- Composite video (CVBS, TVI, CVI, AHD) and IP video input support with ONVIF Profile S Compliance
- 7” Touch-Screen, 1920 x 1200 resolution
- H.265/H.264, 8K video display via mainstream
- RJ45 Ethernet cable, video level meter and cable trace test support
- PoE power voltage, PING and IP address searching support
- 4K, 30fps HDMI input and 4K, 60fps, HDMI output
- Support VGA input and Wi-Fi connectivity
- Rechargeable lithium battery and external 12VDC power supply
- Includes Digital Multimeter
Specifications
Specifications
| VIDEO TEST MONITOR | |
| Monitor | 7” touch screen |
| IP Video | 1 x RJ-45, 10M/100M auto adjust |
| Analog Video | 1 x BNC input: CVBS, TVI, CVI, AHD 1 x BNC output |
| Serial Interface | 1 x RS-485 |
| HDMI | 1 x input and 1 x output |
| VGA | 1 x input |
| PoE | 1 x RJ45, 48V output, maximum 30W |
| Camera Power | 12VDC, 3A output power to camera |
| Audio | 1 x RCA input and 1 x RCA output |
| Micro SD Slot | 8GB card included |
| Power Supply | 12VDC, 2A |
| Battery | 7.6V Lithium polymer battery, 7800mAh |
| Digital Multimeter | DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, support record data and create report |
| Operating Temperature | -10°C ~ + 50°C (4°F ~ 122°F) |
| Operating Humidity | 30% ~ 90% RH |
| Dimensions | 255 x 160 x 46mm (10 × 6.3 × 1.8") |
| Weight | 95kg (2.1lb) |
What's In The Box
What's In The Box
- Qty 1 - Multi-Function Video Test Monitor
