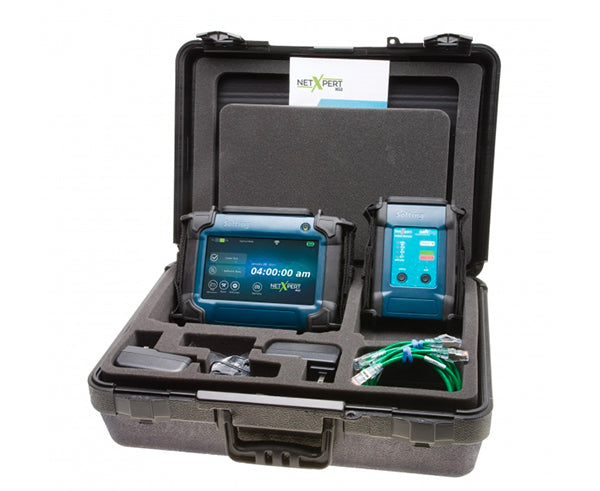

NetXpert XG2 10G Network Tester

The NetXpert XG2 can certify copper or fiber networks to 10G speeds using advanced Bit Error Rate Testing (BERT), pushing real data packets over the cable and measuring the results. This is real world testing, which proves the capabilities of new networks and helps to identify those older cable runs that can operate at higher speeds. The XG2 is also equipped with a full suite of active network tests and tools to speed network installs, including PoE testing and network testing over WiFi. The NetXpert XG2 is designed to be the one device that can perform all the tests you need during an install, simplifying and speeding up the process.

Our Primus Cable and are available to be purchased separately.

Features

Ethernet speed certification of copper and fiber optic systems up to 10Gb
Complete active network testing over copper, fiber and Wifi systems
Cable qualification to IEEE standards
TDR & fiber cable length measurement
PoE testing up to 90W (PoE++)
Fiber Optic Kit includes Two Basic Kits

One Device to Handle All Your Testing Needs

Full color 7" touchscreen in durable armored housing
Convenient form factor with safety hand straps and built-in kickstand
Powered by rechargeable lithium/ion battery pack with optional high-energy upgrade (p/n TXGBATX) or test on AC whille charging
Field-replaceable RJ45 port, dual SFP+ ports, USB port
Easy software updates over wifi or cable for future feature expansion
Generate, document, log and export test reports in PDF, CSV, and XML formats

Copper Cable Testing

Ethernet speed certification to 1/2.5/5/10G
Cable qualification to 1/2.5/5/10G
Pass/fail cable test results
TDR cable length measurement
Distance to opens and shorts
TIA568A/B wiremap testing
Tone generator
Custom cable labeling

Active Network Testing

Works with copper, fiber, or WiFi
Ping to a specific IP or URL address
Link light to identify location on a switch
Verifies DHCP connectivity and DNS
Discovers CDP and LLDP Protocols
Network mapping & traceroute
VLAN discovery

Fiber Optic Cable Testing

Ethernet speed certification to 1/2.5/5/10G
Cable qualification to 1/2.5/5/10G
Pass/fail fiber cable test results
Fiber cable length measurement
Fiber loss measurement
Livelight active transmission testing
Optional microscope image testing

WiFi Testing

Signal strength
Internal, or external WiFi via a dongle

PoE Testing

Load, current and voltage
PSE & PD class detection
PoE cable pairs

Specifications

Length Measurement	Time Domain Reflectomoetry
Output Connections	8- Position Shielded Modular Jack (Data) 2 x 10Gb SFP+ (Fiber)
Interfaces	USB Type A
Languages	EN, FR, ESP, DEU, ITA
Temperature	Operating: -10 to 60°C Storage: -20 to 50°C When Charging: 10 to 40°C
Humidity	10 to 90% non-condensing
Altitude	Operating: 10,000 Ft. (3,048m)
Power Supply	Input 100-240VAC, Output 12VDC 2.5A
Battery	Li-Ion, 7.8V 5500mAh - expected initial life 4hrs. typical at 1Gb speed
Enclosure	Rubber armored impact-resistant plastic
Size	Tester: 9.75 x 7 x 3" (245 x 177 x 73mm) Remote: 5.25 x 7 x 2.25" (130 x 177 x 55mm)
Weight	Tester: 2.65lbs. (1.2Kg) Remote: 1.3lbs. (0.6Kg)
Compliance	CE

Additional Information

The First 10Gig Speed Certifier for Copper & Fiber with Wi-Fi Network Testing

Demand for data bandwidth increases about 30% per year, and more systems are changing to CAT6A to keep up. The NetXpert XG2 was designed to provide a powerful, complete testing solution for those CAT6A installs. Further, some – but not all – CAT6 and even CAT5e cable runs can handle the higher speed, but testing is needed to identify which ones. The XG2 makes it easy to discover those legacy cable runs that can support higher speeds and may not need to be replaced.

The NetXpert XG2 uses advanced Bit Error Rate Testing (BERT) to certify copper or fiber cables to 10G speeds. In addition, the XG2 includes a full array of network tests that can be run over copper, fiber, or wi-fi, as well as PoE testing and even tone generation for cable tracing. It is truly a do-it-all tester for the network cable installer that also produces full, easily-customized reports that can be delivered to the customer, proving the system can operate at the speed specified.
